Within the deep confines of a coal mine, the most pervasive and dangerous threat is often invisible: coal mine gas. Across the history of underground mining, this gas represents both one of mining’s greatest hazards and most promising energy opportunities. As mining activities continue worldwide, understanding the complex nature of these gases becomes crucial for protecting miners while unlocking valuable energy resources.
This guide provides a clear and comprehensive breakdown of what coal mine gas is, the four distinct disaster types it can trigger, including the terrifying gas outburst together with explosions, fires, and asphyxiation and poisoning, and the critical technologies.
What is Coal Mine Gas (CMG)?
Coal mine gas refers to the flammable gases trapped within coal seams. It is primarily methane (CH₄), often exceeding 80–95 percent, with variable amounts of ethane and propane, inert nitrogen, carbon dioxide, and in some deposits traces of toxic hydrogen sulfide.
How is Gas Produced and Stored in Coal mines?
The Coal mine gas, primarily methane (CH₄), is a natural byproduct of the coalification process. This is a flammable gas that formed when ancient plants were buried and slowly turned into coal. In oxygen-poor layers underground, microbes first made methane. Later, heat and pressure from deeper burial produced more and locked it inside the seam.
The gas sits in two places. Some is “free gas” in tiny pores and natural cracks. The rest is “adsorbed” on the coal’s inner surfaces, much like water held in a sponge. When miners cut the seam or lower the pressure, the adsorbed gas lets go and flows into the openings. That is why modern mines rely on steady ventilation, accurate gas monitoring, and methane drainage to keep levels safe and reduce the risk of explosions, fires, poisoning, and sudden gas outbursts.
Types of Coal Mine Gas
The classification of coal mine gas encompasses several distinct categories, each with unique characteristics and challenges for safe extraction and utilization. Understanding these different types is essential for mine operators seeking to implement effective safety measures and explore commercial opportunities for gas utilization.
Coal Mine Methane (CMM)
Coal mine methane is the methane and air mixture removed from active underground mines by ventilation to keep workers safe. Typical streams contain about 25 to 60 percent methane and 5 to 12 percent oxygen. The mix changes from place to place and from hour to hour, which makes use difficult and safety control essential.
Mining disturbs the coal seam and lowers the natural pressure that kept gas in place for millions of years. As coal and rock are removed, trapped methane flows into the mine workings and blends with the ventilation air.
Because the composition is variable, mine operators must track gas levels at all times. The goal is to prevent explosive mixtures and to keep concentrations within safe limits. Oxygen in the stream also complicates any plan to turn this gas into useful energy.

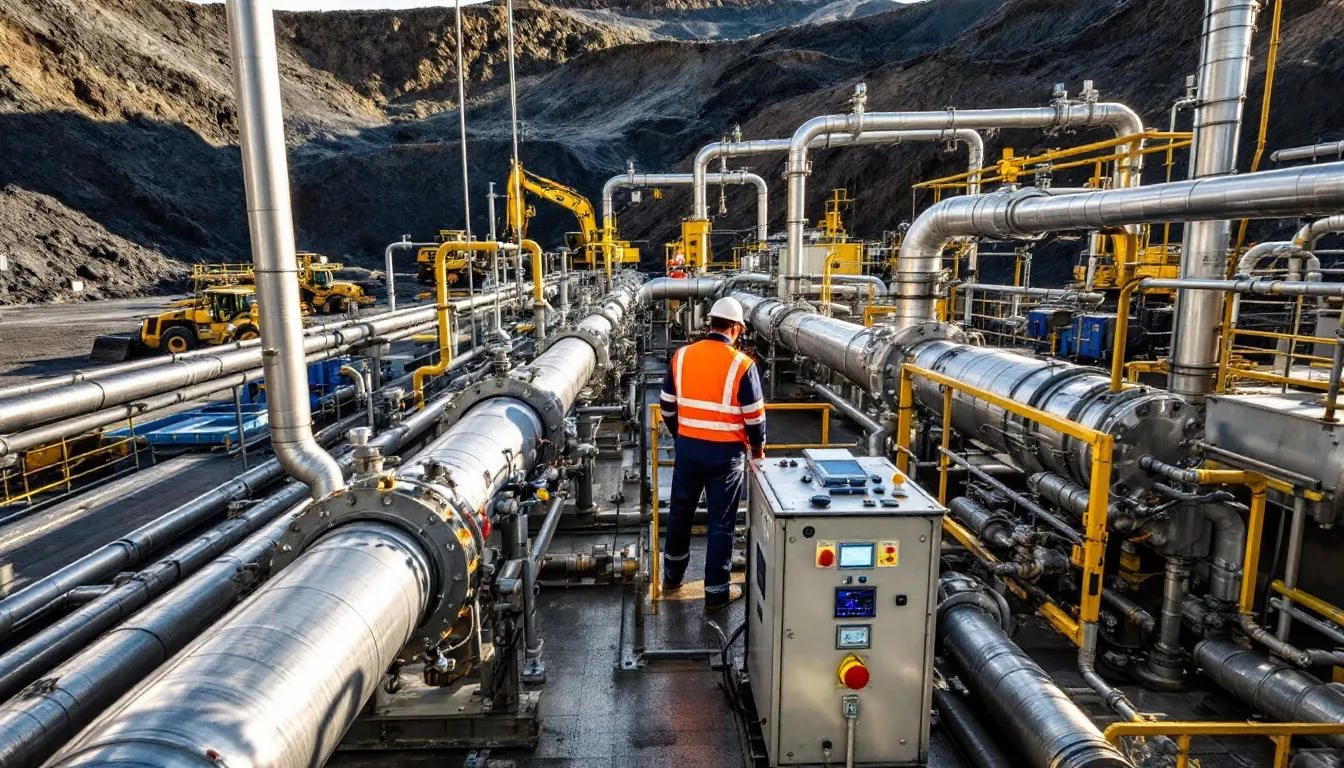

CMM is captured through the main ventilation system and through degasification wells that drain gas from the seam. These systems run continuously to protect workers while also collecting gas for treatment and use. The efficiency of capture affects both safety and the economics of power generation or other utilization.
Coal Bed Methane (CBM)
CBM is high purity methane, usually 90 to 95 percent, produced from unmined coal seams through drilled wells. Because it is clean and consistent, it is often suitable for direct entry to natural gas pipelines after basic treatment.
The gas formed during coalification and became stored inside the coal. Most of it is adsorbed on the coal’s internal surfaces, with some held in natural fractures. When a well lowers pressure in the seam, the gas desorbs and flows toward the wellbore. This storage method lets large volumes of methane sit in relatively small amounts of coal.
Unlike mine ventilation gas, CBM has stable composition and few impurities. It usually needs only dehydration and simple conditioning before use, which is why CBM projects are attractive to energy developers.
In the United States, CBM has supplied a small but meaningful share of annual natural gas production. Wells are drilled independently of coal mining and target specific seams without removing the coal, which allows gas recovery from deposits that may never be mined.
Abandoned Mine Methane (AMM)
Abandoned mine methane is the methane that leaks from closed coal mines through vents, fissures, and old boreholes. Even after mining ends, these workings keep releasing gas. In sealed sections the mix is usually rich in methane, often 60 to 80 percent, with very little oxygen. Because fresh air does not enter easily, gas can rise and collect near the roof of old roadways.
In closed mines the composition changes slowly. Methane levels can stay fairly stable for decades as small amounts are still generated from remaining coal and organic matter. This makes AMM a potential long term energy source. In the United States, about 400 abandoned mines have been identified as “gassy” and suitable for recovery projects, many in West Virginia and Pennsylvania. Capturing this gas can generate electricity, cut greenhouse emissions, and improve safety around former mine sites.
The Four Gas-Related Disasters in a Coal Mine
The presence of coal mine gas creates four distinct, life-threatening hazards, each with its own specific conditions and devastating effects.
1. Gas Explosion
A gas explosion occurs when methane in air ignites. Temperatures can rise from 1,850 to 2,650 °C, and pressure can climb to about 9 times the starting level, which can shatter tunnels and supports. The burn removes oxygen and produces carbon monoxide and carbon dioxide, so survivors face a high risk of suffocation.
Such blasts happen only when three conditions align: methane is between 5 to 16 percent in air, an ignition source is present such as a flame, electrical arc, or friction spark, and the air contains at least 12 percent oxygen.
2. Gas Outburst
A gas outburst is a sudden eruption of methane and finely broken coal from the mining face. Driven by high in-situ stress and gas pressure, it is one of the most violent and least predictable mine disasters. In seconds, an outburst can hurl thousands of tons of coal and release millions of cubic feet of methane (tens of thousands of cubic meters), quickly filling roadways, stripping oxygen, and crushing or burying workers while wrecking ventilation, supports, and equipment.
Outbursts are most likely where three conditions come together. The seam is under very high ground stress from the surrounding rock. Gas pressure in the coal is abnormally high. The coal itself is soft, fractured, or weak, so when pressure drops it shatters and the gas–coal mix surges into the opening.
3. Gas Combustion (Firedamp Ignition)
Gas combustion is a sustained flame of methane in air rather than a sudden blast. The fire consumes oxygen and produces intense heat, causing severe burns, damaging equipment, and weakening supports. If not controlled, it can spread into the coal seam as a larger mine fire or heat the atmosphere enough to trigger a secondary explosion.
These fires start when a continuous methane leak meets an ignition source and the mix stays in its flammable range, about 5% to 16% methane in air, with sufficient oxygen, typically at least 12%, to keep the flame burning.
4. Asphyxiation
Asphyxiation happens when methane builds up and pushes oxygen out of the air. Methane is not poisonous, but at high concentration it replaces the oxygen your body needs. Early effects are headache, dizziness, and confusion, followed by loss of consciousness. The risk rises in poorly ventilated headings and roof cavities, since methane is lighter than air and tends to collect near the roof. When oxygen falls below about 12 percent, breathing becomes difficult; at around 6 percent, collapse and death can occur within minutes.
The essentials are steady ventilation, continuous gas and oxygen monitoring, and rapid evacuation when alarms trigger.
Coal Mine Safety:Predicting and Preventing Gas Disasters
Modern coal mine safety protocols are built around the principle of controlling methane to prevent the conditions for any of these four disasters from ever forming.

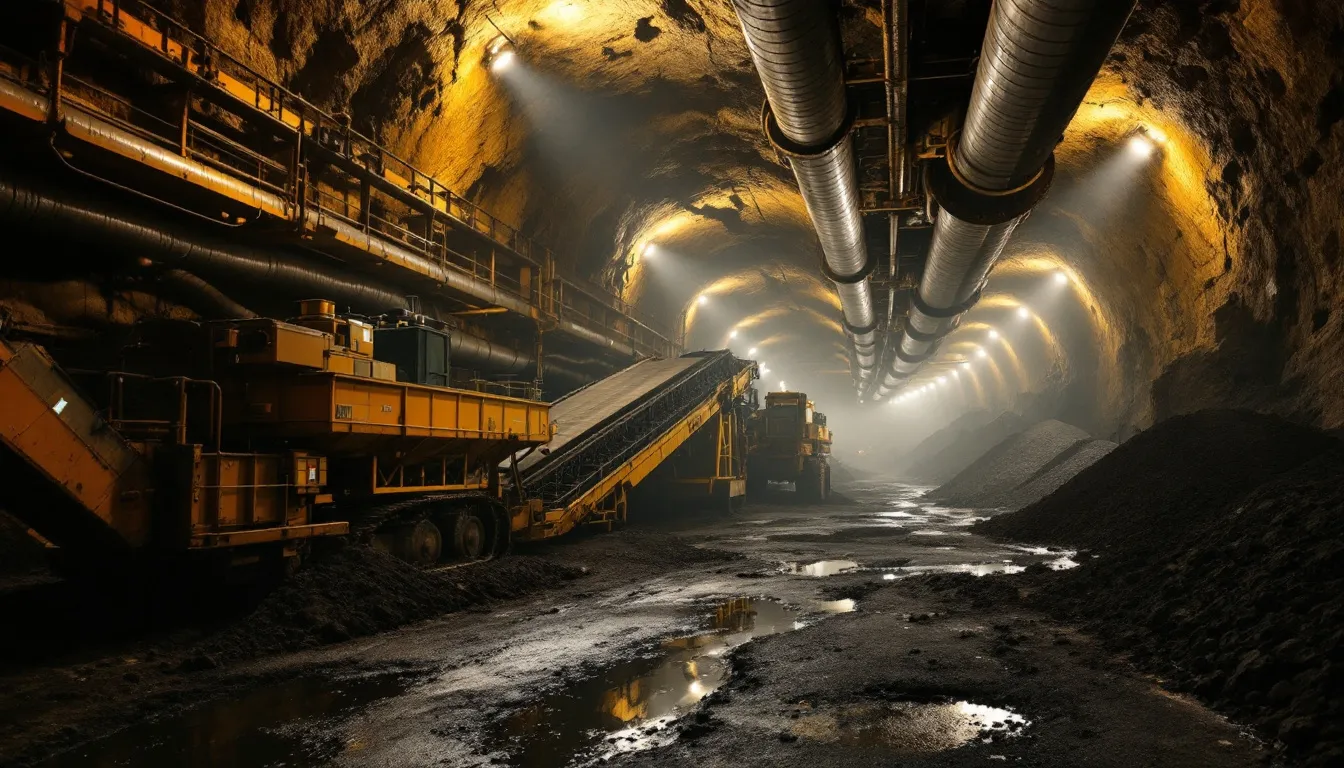

1. Ventilation Systems
Ventilation is the mine’s primary safety system. Powerful surface fans draw fresh air through planned intake and return circuits so every working area is swept by moving air.
This flow dilutes any released methane to non-explosive levels, typically below 1 percent, and carries it out of the mine. Regulators, air doors, curtains, and auxiliary fans shape the path and volume of airflow to avoid dead zones.

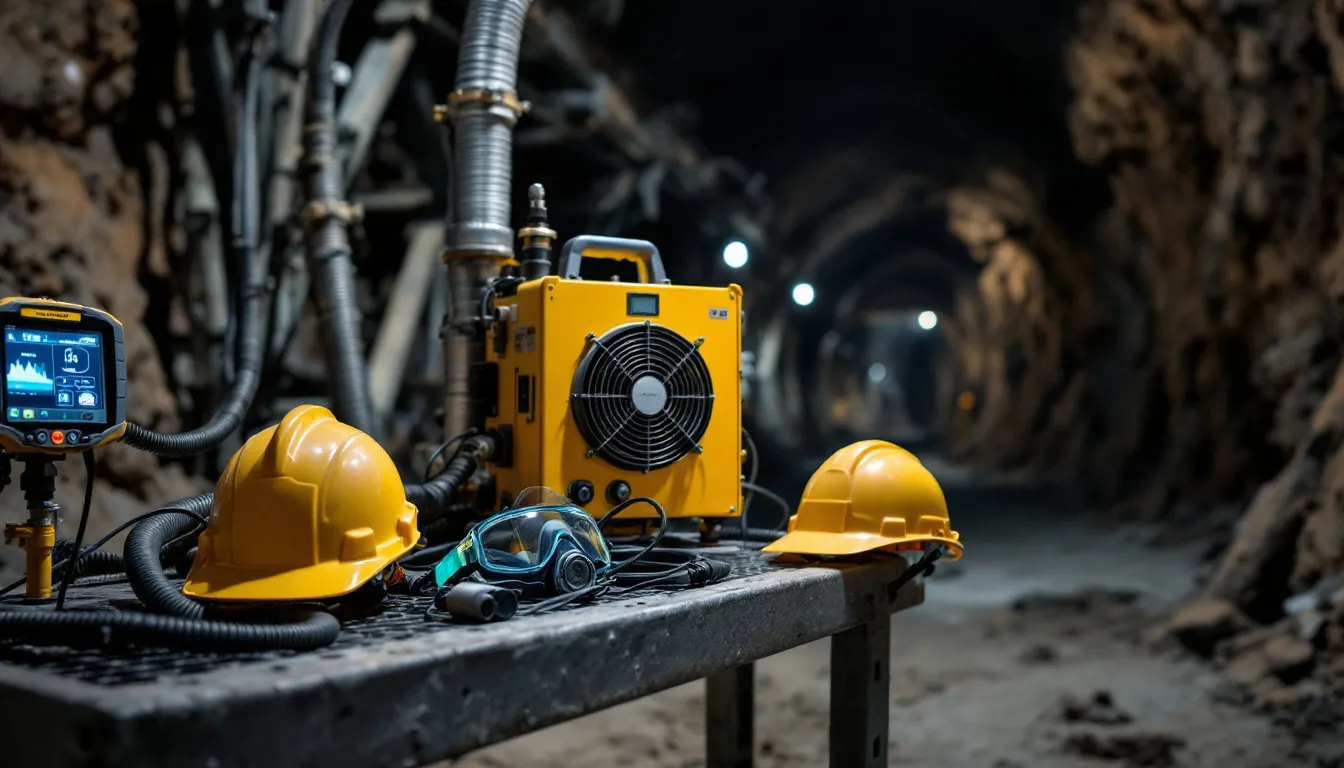

Fixed sensors and handheld meters track methane and oxygen in real time. When readings rise, alarms trigger, ignition sources are de-energized, crews withdraw as needed, and airflow is increased or rebalanced.
Well-tuned ventilation also removes heat, dust, and diesel exhaust, improving visibility and worker alertness while keeping conditions stable for other safety systems.
2. Degasification (Gas Drainage)
Degasification is a proactive method to remove methane before miners reach a seam. Long boreholes are drilled into the coal well in advance of production so the trapped gas can flow out along a controlled path to the surface.
There are two main layouts. From the surface, vertical or angled wells intersect the target seam. Underground, in-seam holes are drilled from roadway headings toward the face that will be mined later. Both connect to a suction system that runs continuously. Typical vacuum levels are in the range of a few to a few tens of kilopascals, strong enough to draw gas without collapsing the formation.
The collected stream is usually methane rich, often 30 to 95 percent, and must be kept low in oxygen, ideally below 1 to 2 percent, to avoid creating an explosive mix inside the pipework. Knockout pots remove water, flame arresters and non-return valves provide protection, and skid compressors move the gas to a flare, an oxidizer, engines, or a small processing unit.
Effective drainage lowers the gas inflow to the face, reduces the load on ventilation, and helps keep return air below about 1 percent methane. It also cuts the risk of outbursts and explosions while creating a usable energy stream from gas that would otherwise vent to the atmosphere.
3. Continuous Methane Monitoring
Modern mines use fixed sensors on equipment and along roadways, plus handheld detectors, to read methane in real time. Data flows to a control system so changes are seen immediately. If methane rises past preset limits, alarms sound and the system can cut power to stop ignition sources.
Typical setpoints are a warning at about 0.5 to 1.0 percent methane and an automatic trip at about 1.5 to 2.0 percent. Power is restored only after levels fall to a safe range. Sensors are placed near cutting heads, along the roof, and in return airways. Systems are designed to fail safe, and regular bump tests and calibration keep readings accurate.
4. Strict Ignition Control
All equipment in active workings is either “explosion-proof” or “intrinsically safe.” Explosion-proof housings are built to contain any internal spark or flame and cool it before it can reach the airway. Intrinsically safe circuits limit voltage and current so any spark stays below the energy needed to ignite methane, roughly a few tenths of a millijoule. Surfaces that could run hot are temperature limited, arcing parts are sealed, and connectors are designed to mate without sparking.
Beyond hardware, safe work practices are equally critical:
- Static Control: Achieved through bonding and grounding, antistatic clothing, and conductive belts.
- Friction and Spark Reduction: Managed with proper tool selection and water sprays at cutting heads.
- Hot Work Permits: Allowed only after gas tests confirm methane is below safe limits (<1%) and with continuous monitoring.
- Diesel Equipment Safety: Units are fitted with intake shutoff valves, exhaust flame arresters, and temperature limiters.
- Automatic Power Cutoff: Electrical power is cut when methane alarms trigger, typically around 1.5-2.0%.
These layers remove ignition sources, so a small gas release does not turn into a fire or explosion.
Conclusion
Coal mine gas poses deadly risks, from sudden outbursts and explosions to silent asphyxiation. With sound science and disciplined controls, including strong ventilation, proactive degasification and real time monitoring, these invisible hazards can be managed. In the end, safety comes from vigilance and careful engineering underground.
